Product Description

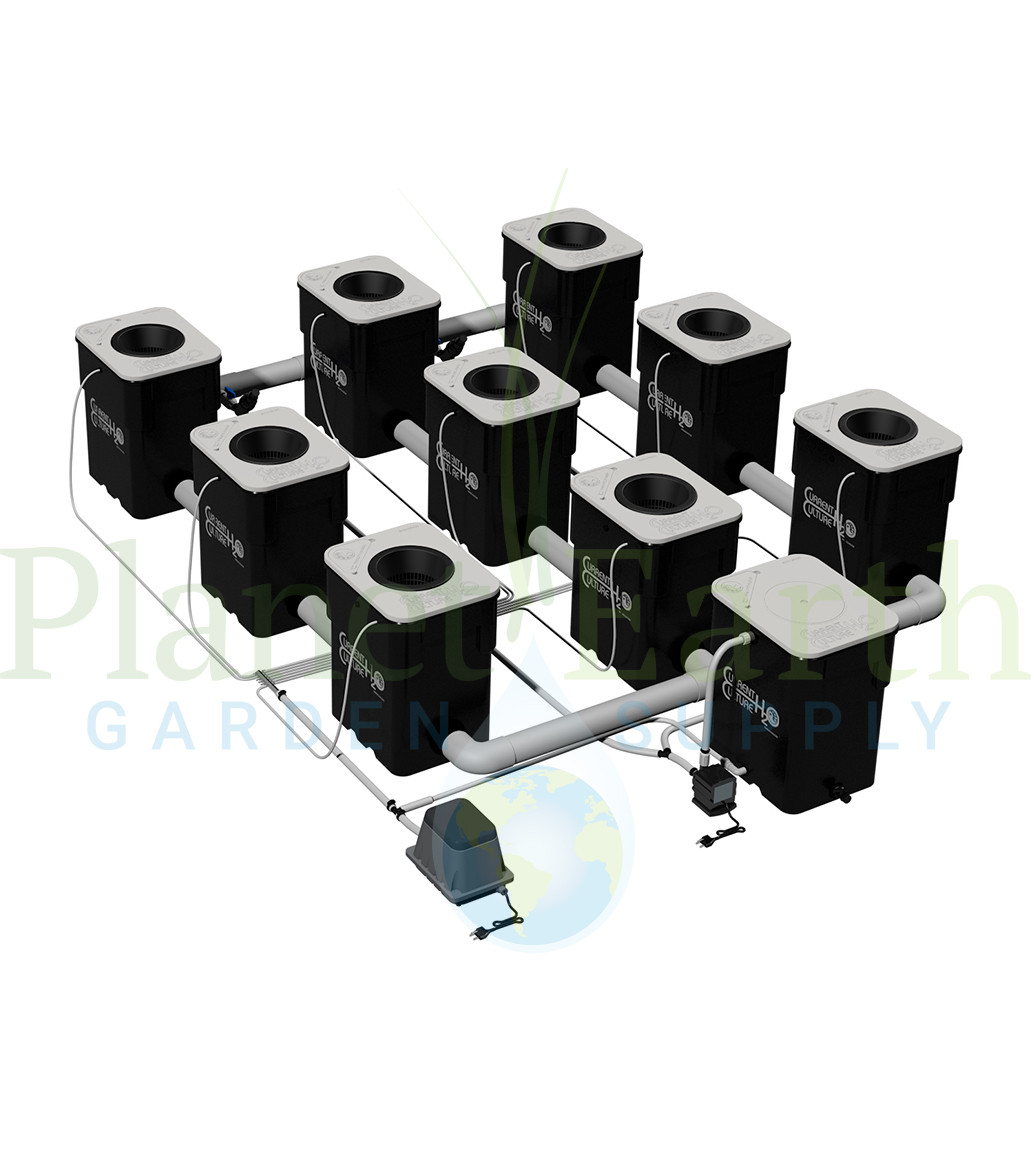

Current Culture Under Current Evolution 9XL 13 gallon 30" Spacing FREE SHIPPING
The Under Current is the worlds first re-circulating Water Culture (RDWC) System featuring our Patented Sub-Current Culture Method. This innovative application circulates literally hundreds of gallons of solution per hour beneath plant roots. The Under Current® supercharges the solution with dissolved oxygen, creating a hyper aerobic condition. All Current Culture Systems now come with white ABS lids. These new white lids are made of durable ABS plastic, are UV stable, 100% non-translucent and highly reflective. New side-entry air ports on all Current Culture Under Current® system now include an innovative side-entry for the air diffuser lines utilizing a uni-seal for each module. This allows you to remove the entire module lid without disconnecting the air lines, making root-zone inspection much easier.
This unit fits into a 12' x 12' grow space with plenty of growth space between the plants and walls of your grow area.
The Under Current Evolution 9 XL 8 Gallon Includes:
- 8 Gallon “Blackout Series” Growth Modules
- CCH2O 5.5″ Heavy Duty Lids with Port Hole
- CCH2O 5.5″ Heavy Duty Net Pots
- 3″ Easy Clean Manifolds & Joints with 3” UC Spin-Tight Bulkheads
- Danner Mag-Drive™ Return Pump
- Premium Linear Air Pump(s)
- 9” Air Diffuser Disc
- Aqua-Pore Air Diffusers
- Air Distribution Manifold
- Air Hose, In-Line Filter(s)
- Adjustable Float Valve with Reservoir Adapter Kit
- Drain Valve
- Chiller Adapter
- Garden Hose Drain Adapter
- Cultured Solutions™ VEG A/B
- 3-Year Warranty.
| NUMBER OF ROWS: | 3 |
| NUMBER OF SITES: | 9 |
| PLANT SPACING & MODULE SIZE: | 30″ Centers / 13 Gallon |
RECOMMENDATIONS
| GROW AREA (FEET / METERS): | 12' x 12' / 3.66m x 3.66m |
| LIGHTING (HORIZONTAL): | 4 X 600W |
| LIGHTING (VERTICAL): | N/A |
| WATER CHILLER SIZE* (HP): | 1/4 - 1/2 HP |
| RESERVOIR (GALLONS / LITERS): | 120 / 500 |
| VEG TIME (WEEKS/IN.): | 3-5 weeks / 24"-36" |
*General Recommendation - Check Manufacturers Specifications for proper chiller sizing.
SPECS

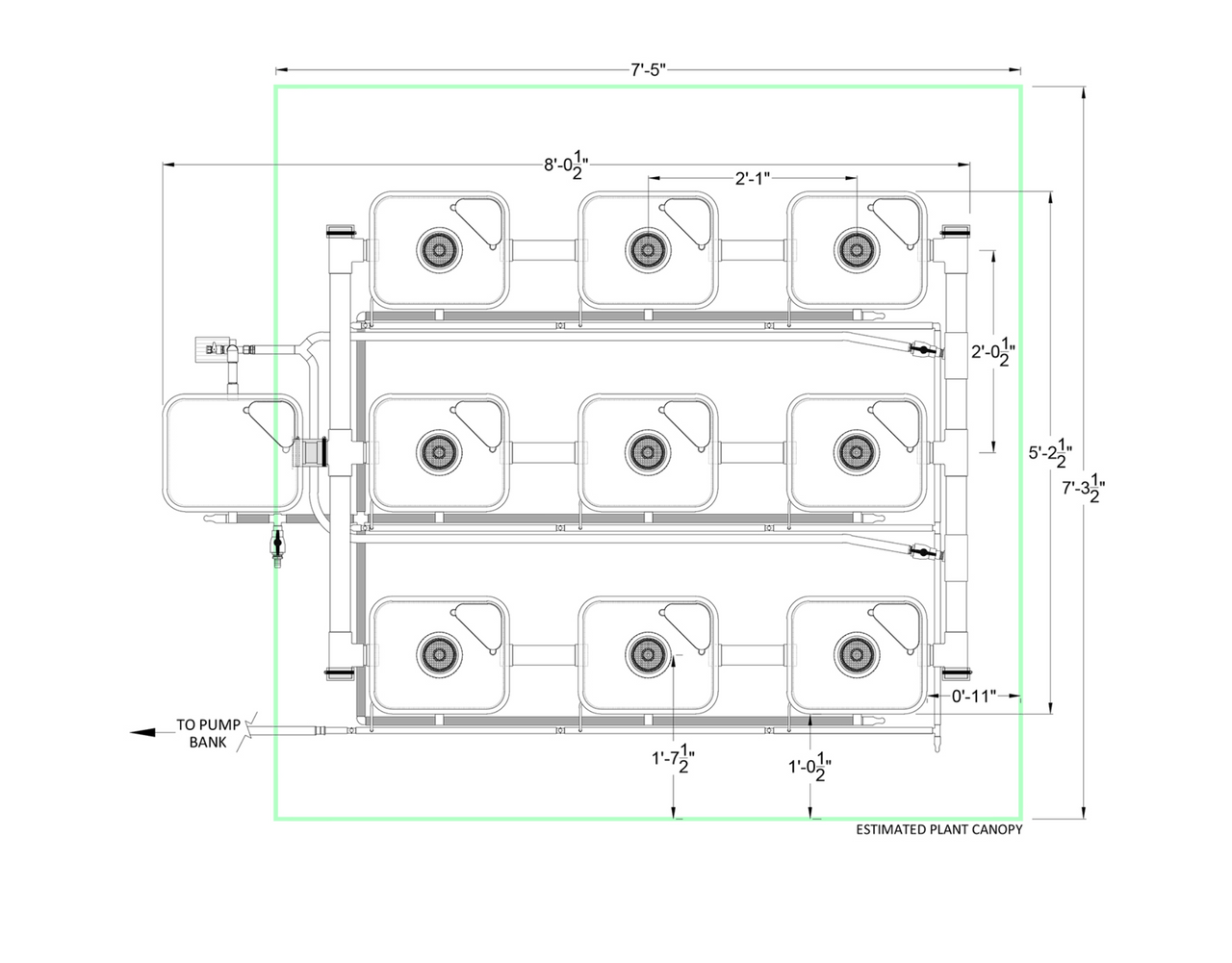

| SYSTEM FOOTPRINT (FEET / METERS): | 6’2" x 9’6" / 1.88m x 2.9m |
| TOTAL SYSTEM VOLUME (GALLONS / LITERS): | 113 / 428 |
| POWER USAGE (WATTS): | 165 |
| AIR PUMP SIZE(S) (LPM): | 100 |
| AERATION RATE (LPM PER GALLON): | 0.87 |
| WATER PUMP SIZE (GPH / LPH): | 700 / 2650 |
| RECIRCULATION RATE (EXCHANGES PER HR.): | 6.19 |
SHIPPING INFO
| SHIPPING WEIGHT (LBS. / KG): | 140 / 63.5 |
| SHIPPING BOX SIZES (IN.): | (2)16x18x48 |
