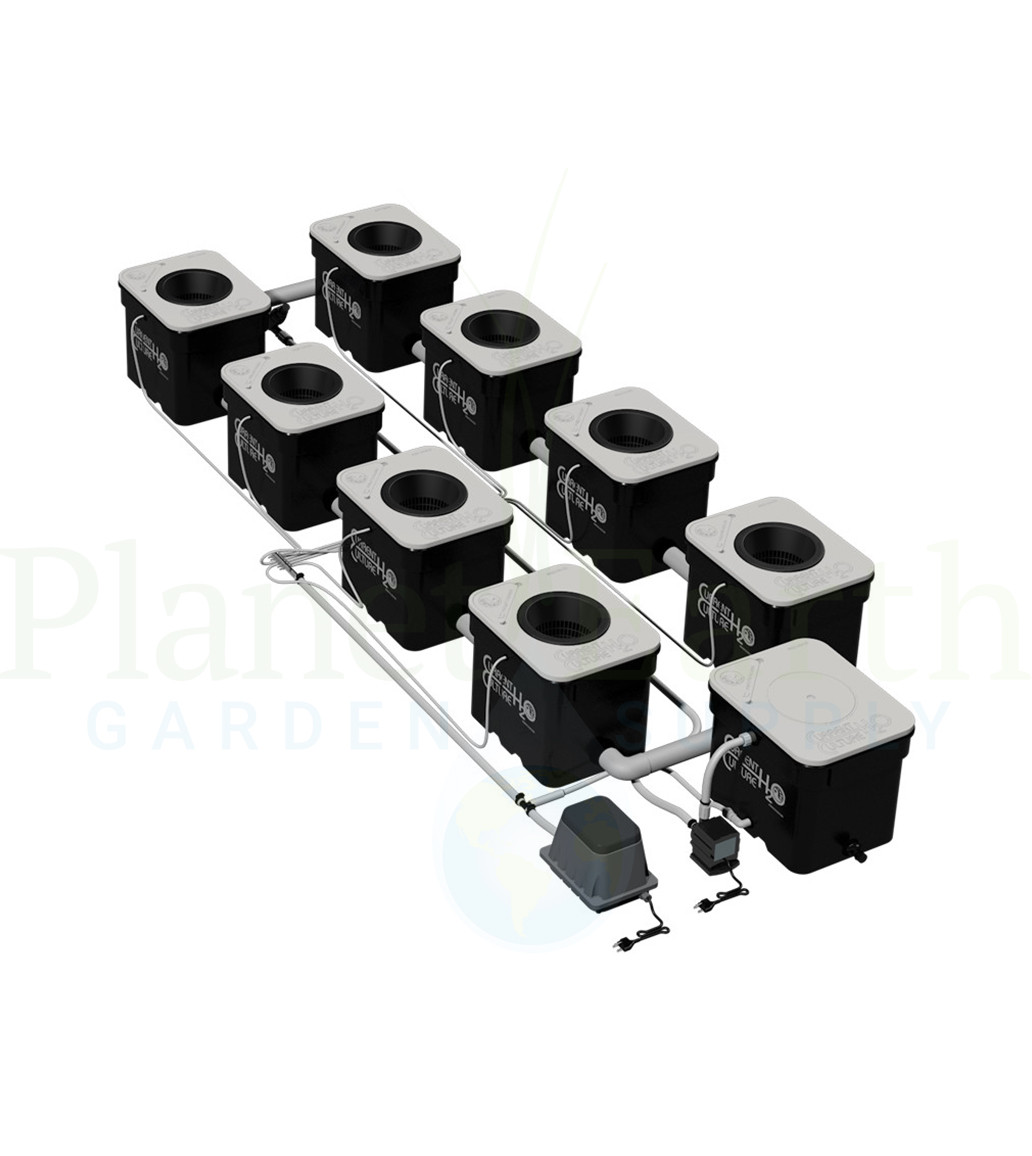

Current Culture Under Current 8XL

Product Description

Current Culture Under Current 8XL FREE SHIPPING

The Under Current® is the worlds first re-circulating Water Culture Hydroponic System featuring our Patented Sub-Current Culture® Method. This innovative application circulates literally hundreds of gallons of solution per hour beneath plant roots. The Under Current® supercharges the solution with dissolved oxygen, creating a hyper aerobic condition. All Current Culture Systems now come with white ABS lids. These new white lids are made of durable ABS plastic, are UV stable, 100% non-translucent and highly reflective. New side-entry air ports on all Current Culture Under Current® system now include an innovative side-entry for the air diffuser lines utilizing a uni-seal for each module. This allows you to remove the entire module lid without disconnecting the air lines, making root-zone inspection much easier.

The Under Current 8 XL Includes:

8 Gallon “Blackout Series” Growth Modules
CCH2O 8″ Heavy Duty Lids with Port Hole
CCH2O 8″ Heavy Duty Net Pots
2″ Manifold & Joints with 2” UC Spin-Tight Bulkheads
Danner Mag-Drive™ Return Pump
Premium Linear Air Pump(s)
9” Air Diffuser Disc
Aqua-Pore Air Diffusers
Air Distribution Manifold
Air Hose, In-Line Filter(s)
Adjustable Float Valve with Reservoir Adapter Kit
Drain Valve
Chiller Adapter
Garden Hose Drain Adapter
Cultured Solutions™ VEG A/B
1-Year Warranty.

Under Current 8 XL
NUMBER OF ROWS: 2
NUMBER OF SITES: 8
PLANT SPACING & MODULE SIZE: 25″ Centers / 8 Gallon

RECOMMENDATIONS
GROW AREA (FEET / METERS): 5' x 10' / 1.5m x 3.05m
LIGHTING (HORIZONTAL): 2 X 1000W
LIGHTING (VERTICAL): N/A
WATER CHILLER SIZE* (HP): 1/10 - 1/6 HP
RESERVOIR (GALLONS / LITERS): 70 / 300
VEG TIME (WEEKS/IN.): 2-3 weeks / 18"-24"

*General Recommendation - Check Manufacturers Specifications for proper chiller sizing.

SPECS

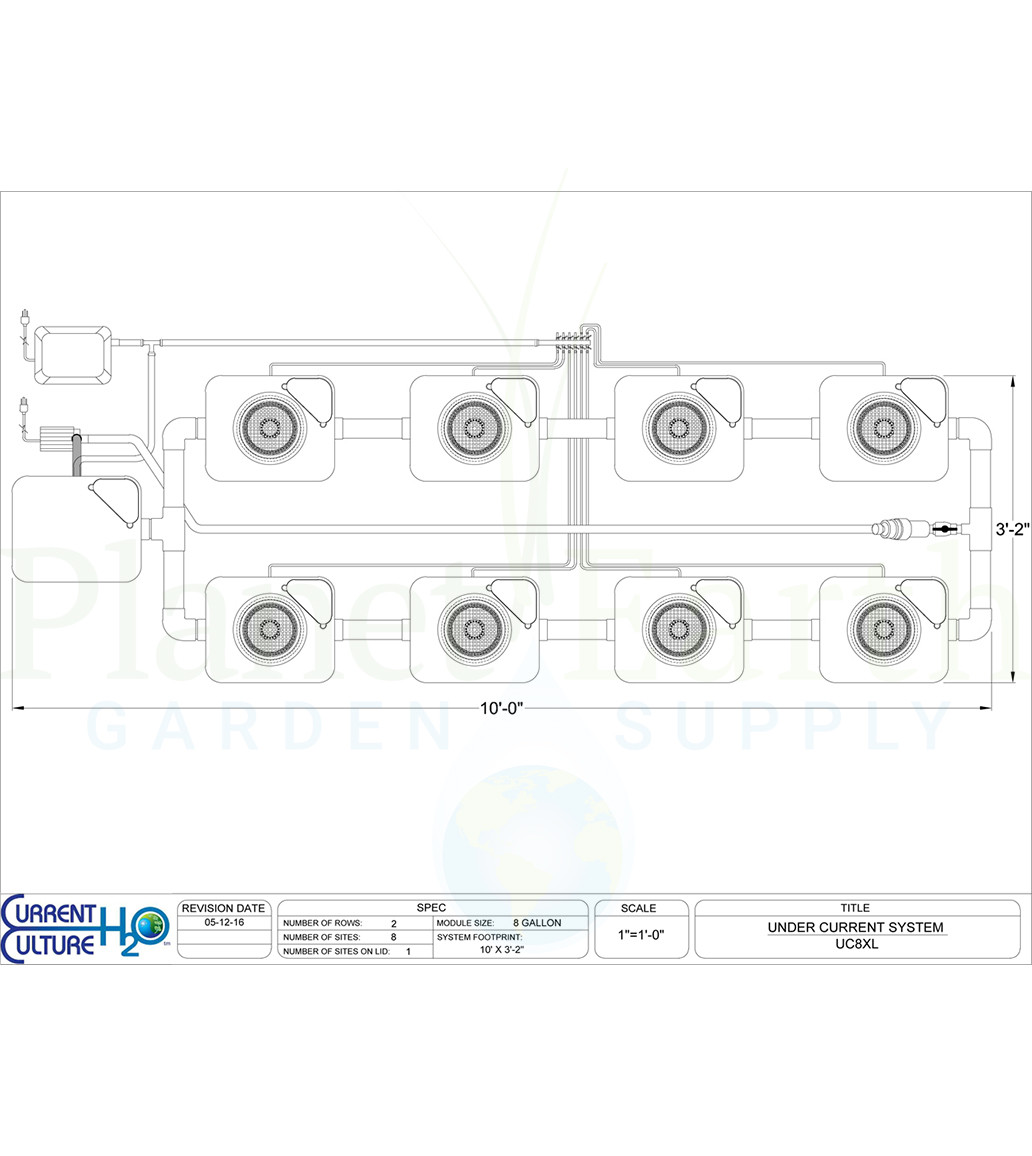

SYSTEM FOOTPRINT (FEET / METERS): 3’3" x 9’7" / 1m x 2.93m
TOTAL SYSTEM VOLUME (GALLONS / LITERS): 65 / 246
POWER USAGE (WATTS): 100
AIR PUMP SIZE(S) (LPM): 60
AERATION RATE (LPM PER GALLON): 0.92
WATER PUMP SIZE (GPH / LPH): 500 / 1893
RECIRCULATION RATE (EXCHANGES PER HR.): 7.69

SHIPPING INFO
SHIPPING WEIGHT (LBS. / KG): 95 / 43.1
SHIPPING BOX SIZES (IN.): (2)16X18X36
