Product Description

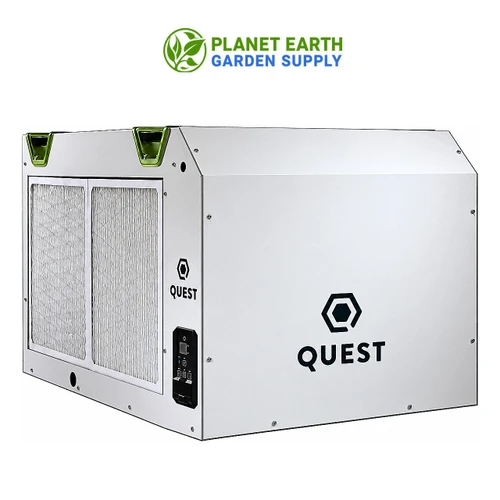

Quest 506 High Efficiency Overhead Dehumidifier with M-CoRR Technology, 500 pints a day, 208-230 volts FREE SHIPPING
Product Summary
Quest 506 High Efficiency Overhead Dehumidifier with M-CoRR Technology delivers commercial humidity control for indoor cultivation facilities, greenhouses, and demanding production environments. Rated to remove 500 pints of moisture daily at 80°F and 60% relative humidity, this 208–230V commercial dehumidifier helps growers manage substantial moisture loads while preserving valuable floor space.
Engineered for efficient operation, the Quest 506 achieves 9.2 pints per kilowatt-hour under rated conditions. Its overhead installation capability, digital controls, and MERV 13 filtration support practical environmental management throughout commercial growing operations. Shop this high-capacity grow room dehumidifier at PlanetEarthGardenSupply.com with free shipping.
Key Features & Benefits
- High-capacity dehumidification: Removes 500 pints daily under specified testing conditions.
- M-CoRR technology: Uses multi-coil refrigeration to support energy-efficient moisture removal.
- Overhead installation: Keeps equipment above the workspace to preserve usable floor area.
- Digital humidity controls: Provide convenient onboard adjustment with an external control option.
- MERV 13 filtration: Filters airborne particles as air circulates through the equipment.
- Flexible placement: Supports ceiling mounting or elevated freestanding installation.
- Commercial airflow: Moves 1,150 CFM to support moisture management in demanding facilities.
Product Specifications
- Brand: Quest
- Model: 506
- Part number: 4046300
- Capacity: 500 pints/day at 80°F, 60% RH
- Voltage: 208–230V
- Current: 10.9 amps at 208V; 9.9 amps at 230V
- Power: 2,250 watts
- Efficiency: 9.2 pints/kWh
- Operating temperature: 56°F–95°F
- Filter: MERV 13
- Refrigerant: R454B
- Drain: ¾-inch threaded NPT
- Shipping: Free shipping
Actual water removal depends on temperature and relative humidity. Size your commercial dehumidification system around facility moisture loads, airflow, and operating conditions for effective humidity management.
Product Questions & Answers
1. Does this Quest 506 include onboard humidity controls?
Yes. Model #4046300 includes onboard digital controls and a low-voltage terminal block for an external control option.
2. How does electrical draw differ between 208V and 230V?
At rated conditions, the unit draws 10.9 amps at 208V or 9.9 amps at 230V.
3. Can the dehumidifier stand on the floor instead of hanging overhead?
Yes. It supports freestanding installation, but it must be elevated to provide clearance for the required drain trap.
4. What capacity does Quest specify at 75°F and 50% relative humidity?
At those conditions, the Quest 506 removes 320 pints daily. Its 500-pint rating applies at 80°F and 60% relative humidity.
5. What filter size does this model require?
The Quest 506 uses an 18 × 20 × 2-inch MERV 13 air filter.
