Product Description

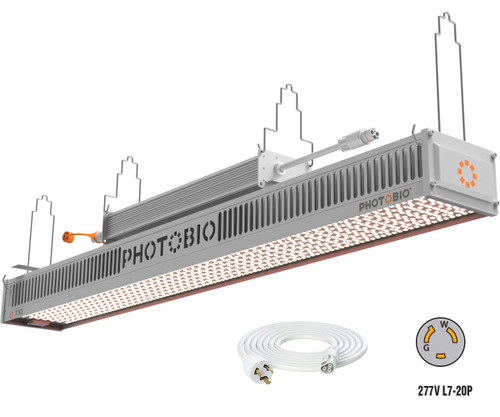

PHOTOBIO TX2 LED 800 Watts (200-480 Volts) S5, 10 foot 277 Volts L7-20P Cord FREE SHIPPING
SPECIAL INTERNET PRICING Introducing the PHOTOBIO TX2 LED 800-watt commercial top light, engineered to maximize crop yield, energy efficiency, and overall operational cost-effectiveness for professional growers. This high-performance fixture delivers advanced spectrum control and robust thermal management to unlock the full genetic potential of your canopy.
The PHOTOBIO TX2 LED 800 Watts (200-480 Volts) S5, 10 foot 277 Volts L7-20P Cord top light delivers 800 watts of continuous power paired with the highly optimized S5 spectrum. This system merges state-of-the-art horticultural technology with commercial-grade functionality.
Optimized for greenhouse and single-level indoor facilities, its slim linear profile prevents sunlight obstruction in greenhouse settings while ensuring superior canopy access indoors. Operating on a wide commercial voltage range of 208V to 480V AC with automatic voltage recognition, the fixture features an innovative Origami-style folded fin aluminum heatsink that reduces total weight by 18% while managing thermal output to support a 38% increase in PPF.
This commercial LED fixture provides highly uniform PPFD (Photosynthetic Photon Flux Density) distribution, ensuring deep canopy penetration and balanced light delivery across the cultivation footprint. Designed for high-density setups, the PHOTOBIO TX2 drives consistent crop quality and optimal vegetative and flowering development.
TX2 Improvements Versus Previous Generation:
- NEW S5 Spectrum: A balanced, full-cycle spectrum with enhanced red wavelengths, featuring a Red-to-Blue (R:B) ratio of 2.6:1 and a Blue-to-Green (B:G) ratio of 1:1.
- Proprietary Origami-Style Folded Fins (POFF): Advanced aluminum heatsink design for superior passive thermal management.
- Increased Output: Delivers a 38% increase in overall photosynthetic light output.
- Enhanced Efficiency: Achieves an 18% improvement in fixture efficacy.
- Lightweight Design: Features an 18% weight reduction for easier installation and handling.
- Wide Voltage Compatibility: Supports input voltages from 208V to 480V AC with auto-recognition.
Everything you loved about PHOTOBIO TX is inherited to TX2:
- Optical Encapsulation: Best-in-class proprietary protection for the light engine to ensure long-term durability.
- 0-10V Dimming: Fully compatible with all PHOTOBIO dimming interfaces and major third-party controllers.
- Rebate Eligible: ETL Listed and DLC Hort QPL Listed for commercial energy rebate qualification.
- Premium Build: Constructed with architectural-grade aluminum for heavy-duty commercial environments.
- IP65 Rating: Dust-tight and water-resistant construction suitable for humid wash-down environments.
- 5-Year Warranty: Fully backed by the trusted Hydrofarm support team.
Features:
- PPF Output: Delivers 2400 µmol/s of Photosynthetic Photon Flux (400–700 nm).
- High Efficacy: Achieves 3.0 µmol/J fixture efficacy when operated at 277V.

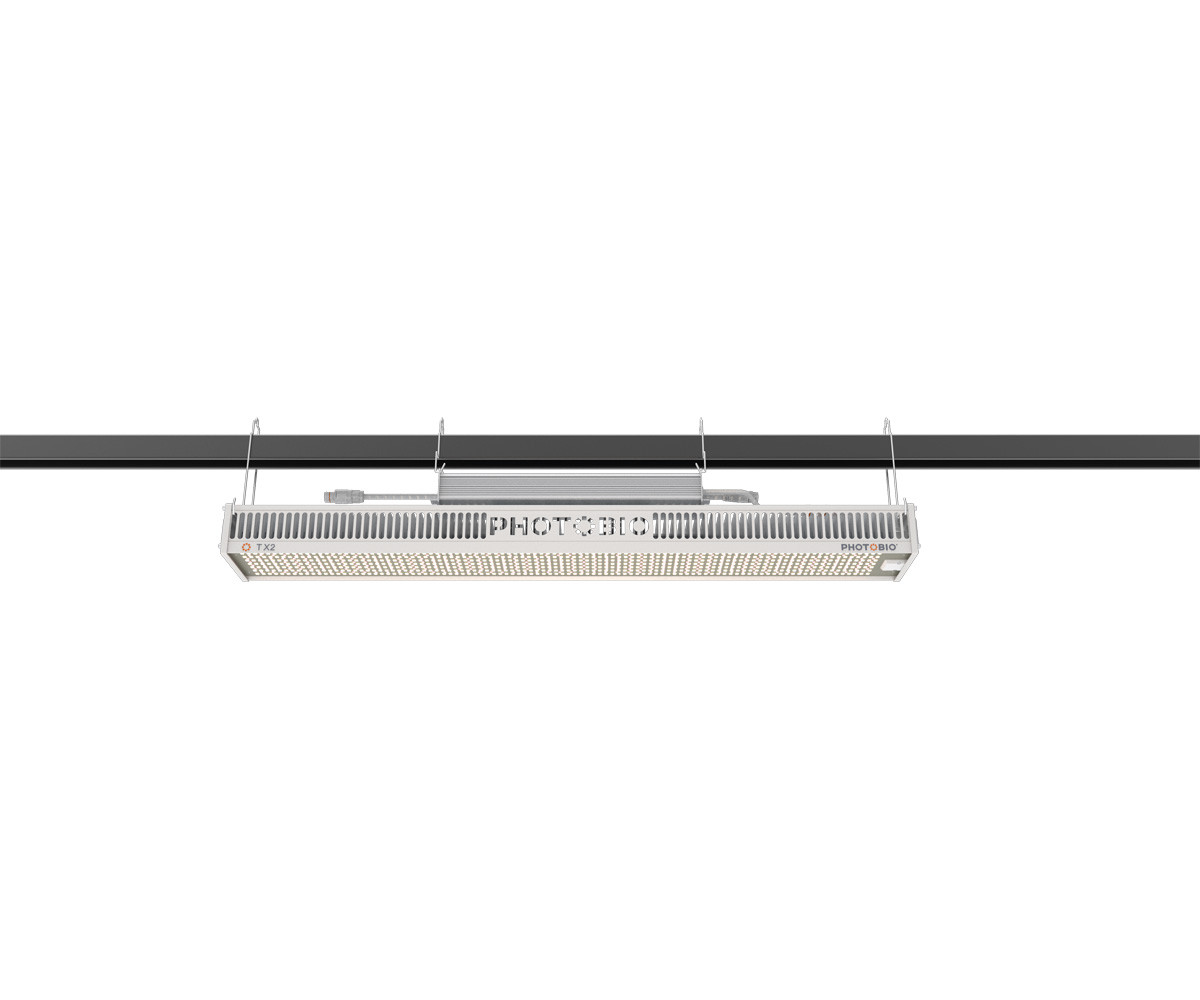

- Low-Profile Design: Thin linear footprint minimizes shadow cast in greenhouses and optimizes indoor space.
- Passive Cooling: Proprietary Origami-style aluminum heatsink ensures silent, fanless heat dissipation.
- Precision Control: Compatible with Autopilot PX-series controllers (PX2 and above) for exact photon scheduling.

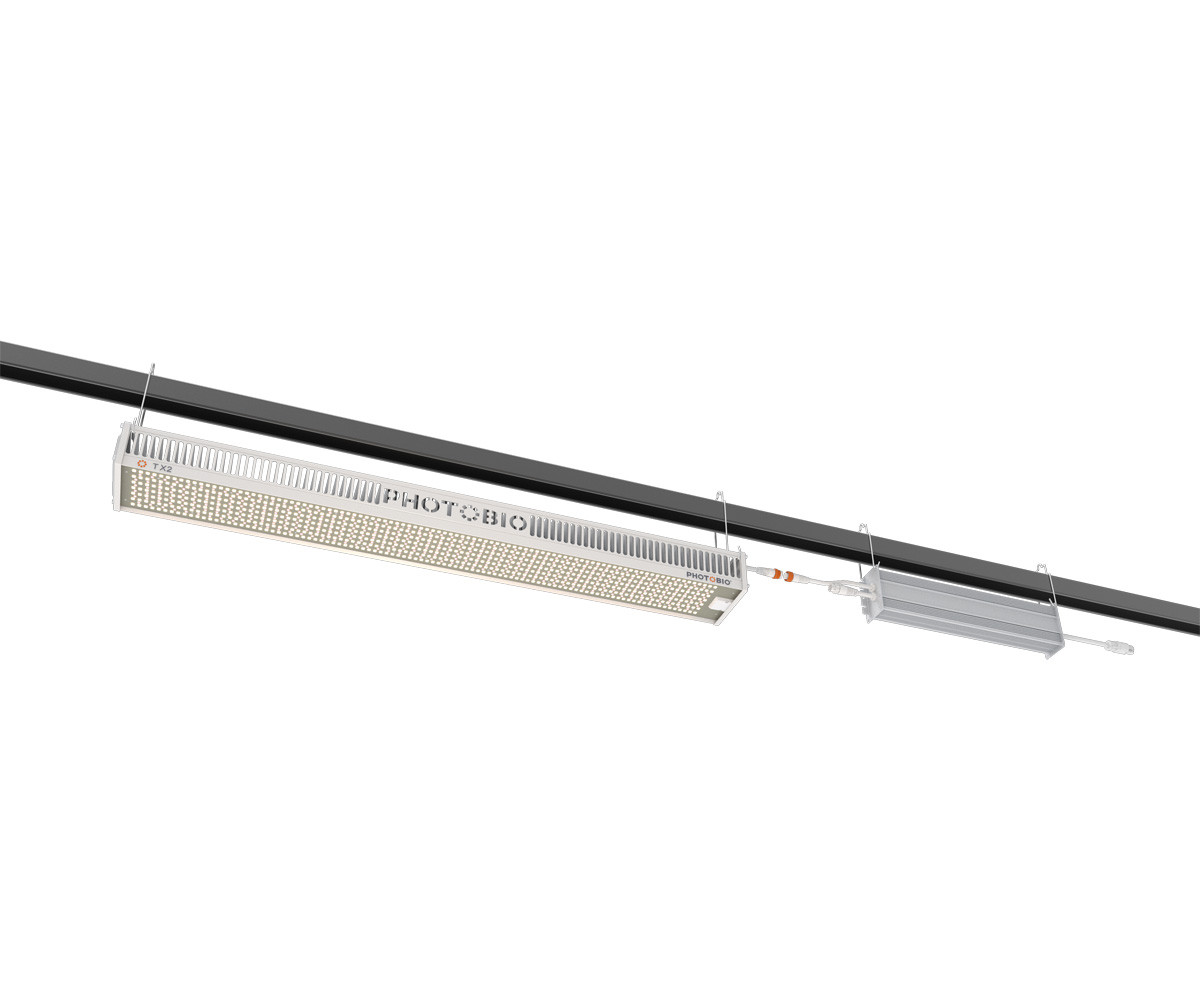

- Remote Driver Mounting: Driver can be remotely mounted to minimize heat load in the growing space.
- AC Power Distribution: Compatible with the optional PHOTOBIO AC Power Distribution Tree to daisy-chain multiple fixtures.
- DC Comm Tree: Integrates with the optional PHOTOBIO DC Communications Tree for centralized control.
Note: The PHOTOBIO TX2 is engineered exclusively for high-voltage commercial applications (200-480V) and is optimized for professional facilities rather than standard residential 120V power inputs.
*Recommended consultation of a licensed electrician working with electrical engineer following applicable electrical code and inspections.
Specs
| Attribute name | Attribute value |
|---|---|
| Average Rated Life Hours | 50000 |
| Ballast Type | Photobio 200-480V |
| Color Temp | 6000-6500 |
| ETL_Registration | YES |
| FCC_Registration | Yes |
| Frequency | 50/60 |
| Rated Wattage | 800 |
| ROHS_Registration | Yes |
| Weight (Unboxed) | 23.6 |
| Width (Unboxed) | 42.2 |
| Length (Unboxed) | 5 |
| Height (Unboxed) | 3.3 |
| Voltage | 200-480 |
| Wire Gauge (AWG) | 16 |
