Product Description

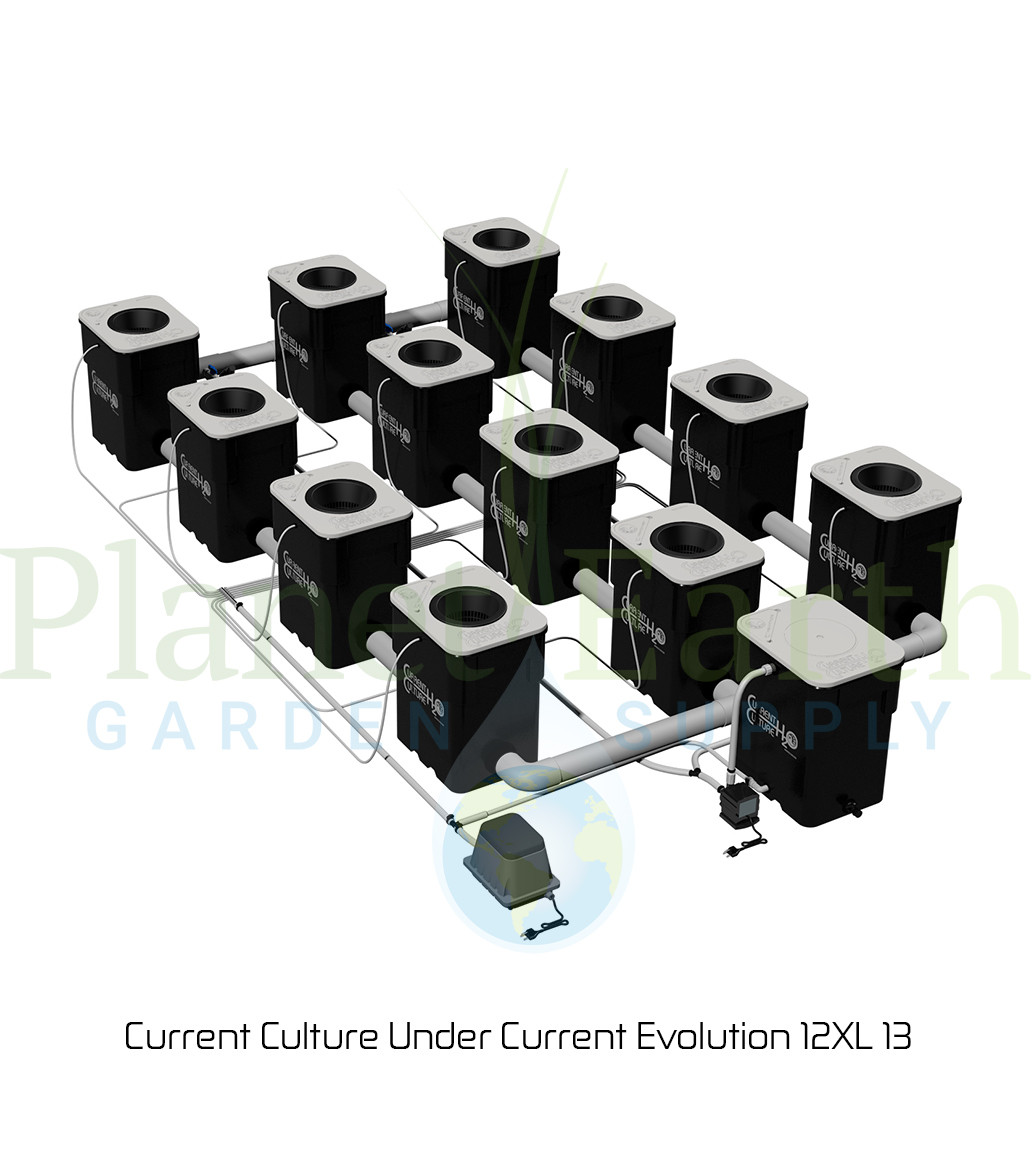

Current Culture Under Current Evolution 12XL 13 FREE SHIPPING

The Under Current® is the worlds first re-circulating Water Culture Hydroponic System featuring our Patented Sub-Current Culture® Method. This innovative application circulates literally hundreds of gallons of solution per hour beneath plant roots. The Under Current® supercharges the solution with dissolved oxygen, creating a hyper aerobic condition. All Current Culture Systems now come with white ABS lids. These new white lids are made of durable ABS plastic, are UV stable, 100% non-translucent and highly reflective. New side-entry air ports on all Current Culture Under Current® system now include an innovative side-entry for the air diffuser lines utilizing a uni-seal for each module. This allows you to remove the entire module lid without disconnecting the air lines, making root-zone inspection much easier.

The Under Current Evolution 12 XL13 Includes:

13 Gallon “Blackout Series” Growth Modules
CCH2O 8″ Heavy Duty Lids with Port Hole
CCH2O 8″ Heavy Duty Net Pots
3″ Manifold & Joints with 3” UC Spin-Tight Bulkheads
Danner Mag-Drive™ Return Pump
Premium Linear Air Pump(s)

9” Air Diffuser Disc
Aqua-Pore Air Diffusers
Air Distribution Manifold
Air Hose, In-Line Filter(s)
Adjustable Float Valve with Reservoir Adapter Kit

Drain Valve
Chiller Adapter
Garden Hose Drain Adapter
Cultured Solutions™ VEG A/B
1-Year Warranty.

NUMBER OF ROWS:	3
NUMBER OF SITES:	12
PLANT SPACING & MODULE SIZE:	30″ Centers / 13 Gallon

RECOMMENDATIONS

GROW AREA (FEET / METERS):	12' x 16' / 3.66m x 4.88m
LIGHTING (HORIZONTAL):	6 X 600W OR 4 X 1000W
LIGHTING (VERTICAL):	N/A
WATER CHILLER SIZE* (HP):	1/4 - 1/2 HP
RESERVOIR (GALLONS / LITERS):	150 / 600
VEG TIME (WEEKS/IN.):	3-5 weeks / 24"-36"

*General Recommendation - Check Manufacturers Specifications for proper chiller sizing.

SPECS

SYSTEM FOOTPRINT (FEET / METERS):	6’2" x 12’1" / 1.88m x 3.68m
TOTAL SYSTEM VOLUME (GALLONS / LITERS):	146 / 553
POWER USAGE (WATTS):	223
AIR PUMP SIZE(S) (LPM):	(1)30, (1)100
AERATION RATE (LPM PER GALLON):	0.89
WATER PUMP SIZE (GPH / LPH):	950 / 3597
RECIRCULATION RATE (EXCHANGES PER HR.):	6.51

SHIPPING INFO

SHIPPING WEIGHT (LBS. / KG):	180 / 81.7
SHIPPING BOX SIZES (IN.):	(2) 16x18x48, (1) 16x18x36
