Current Culture Under Current Evolution 12XL

Product Description

Current Culture Under Current Evolution 12XL FREE SHIPPING

The Under Current® is the worlds first re-circulating Water Culture Hydroponic System featuring our Patented Sub-Current Culture® Method. This innovative application circulates literally hundreds of gallons of solution per hour beneath plant roots. The Under Current® supercharges the solution with dissolved oxygen, creating a hyper aerobic condition. All Current Culture Systems now come with white ABS lids. These new white lids are made of durable ABS plastic, are UV stable, 100% non-translucent and highly reflective. New side-entry air ports on all Current Culture Under Current® system now include an innovative side-entry for the air diffuser lines utilizing a uni-seal for each module. This allows you to remove the entire module lid without disconnecting the air lines, making root-zone inspection much easier.

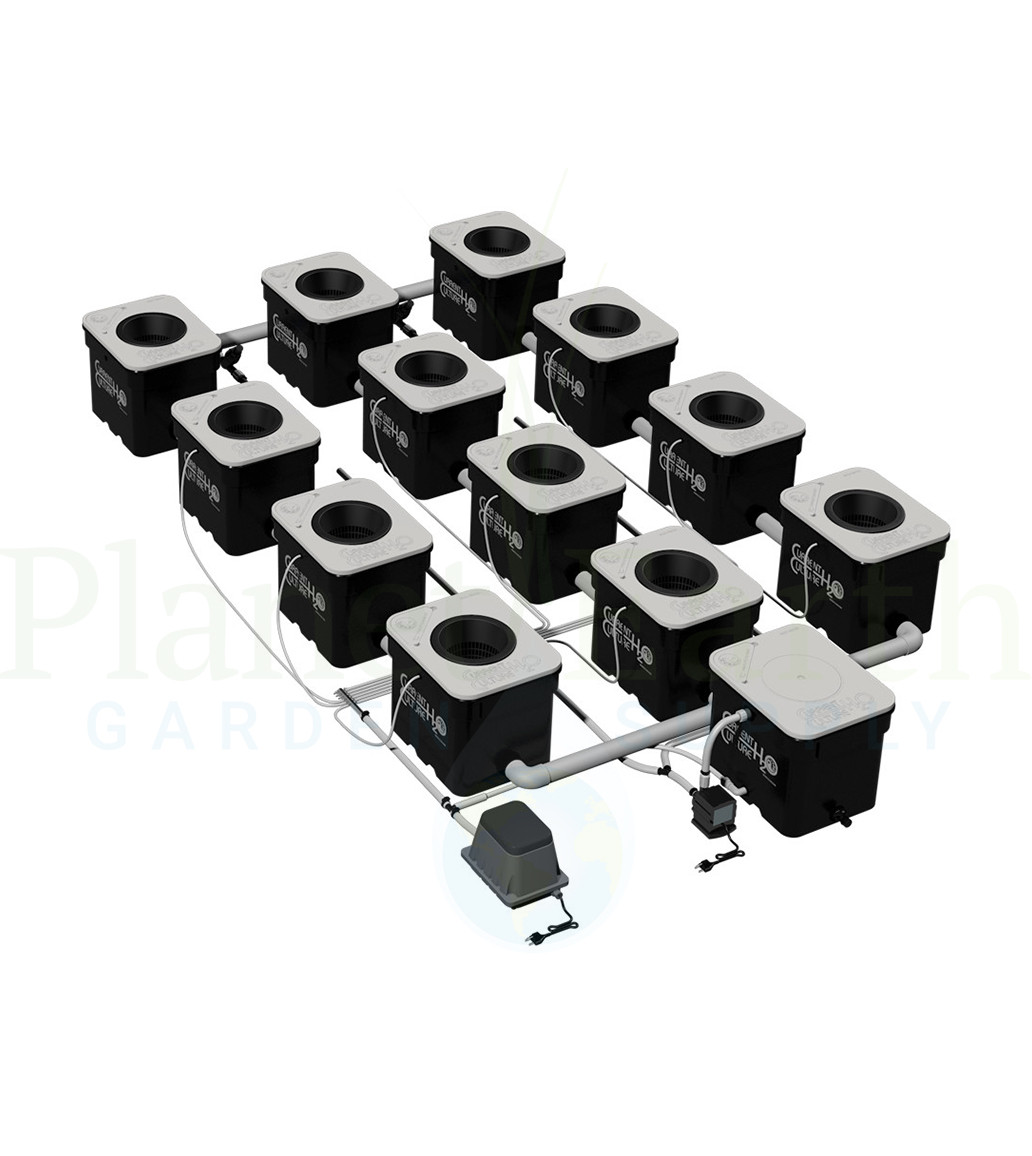

Under Current Evolution 12 XL
NUMBER OF ROWS: 3
NUMBER OF SITES: 12
PLANT SPACING & MODULE SIZE: 25″ Centers / 8 Gallon

RECOMMENDATIONS
GROW AREA (FEET / METERS): 10' x 12' / 3.05m x 3.66m
LIGHTING (HORIZONTAL): 6 X 600W
LIGHTING (VERTICAL): N/A
WATER CHILLER SIZE* (HP): 1/4 - 1/2 HP
RESERVOIR (GALLONS / LITERS): 100 / 400
VEG TIME (WEEKS/IN.): 2-3 weeks / 18"-24"

*General Recommendation - Check Manufacturers Specifications for proper chiller sizing.

SPECS
SYSTEM FOOTPRINT (FEET / METERS): 5’4" x 9’7" / 1.63m x 2.93m
TOTAL SYSTEM VOLUME (GALLONS / LITERS): 92 / 348
POWER USAGE (WATTS): 145
AIR PUMP SIZE(S) (LPM): 80
AERATION RATE (LPM PER GALLON): 0.89
WATER PUMP SIZE (GPH / LPH): 700 / 2650
RECIRCULATION RATE (EXCHANGES PER HR.): 7.61

Shipping Info
SHIPPING WEIGHT (LBS. / KG): 125 / 56.7
SHIPPING BOX SIZES (IN.): (1)16X18X48, (1)16X18X36

The Under Current Evolution 12 XL Includes:

8 Gallon “Blackout Series” Growth Modules
CCH2O 8″ Heavy Duty Lids with Port Hole
CCH2O 8″ Heavy Duty Net Pots
2″ Manifold & Joints with 2” UC Spin-Tight Bulkheads
Danner Mag-Drive™ Return Pump
Premium Linear Air Pump(s)
9” Air Diffuser Disc
Air Stones
Air Distribution Manifold
Air Hose, In-Line Filter(s)
Adjustable Float Valve with Reservoir Adapter Kit
Drain Valve Chiller Adapter
Garden Hose Drain Adapter
Cultured Solutions™ VEG A/B
1-Year Warranty.
